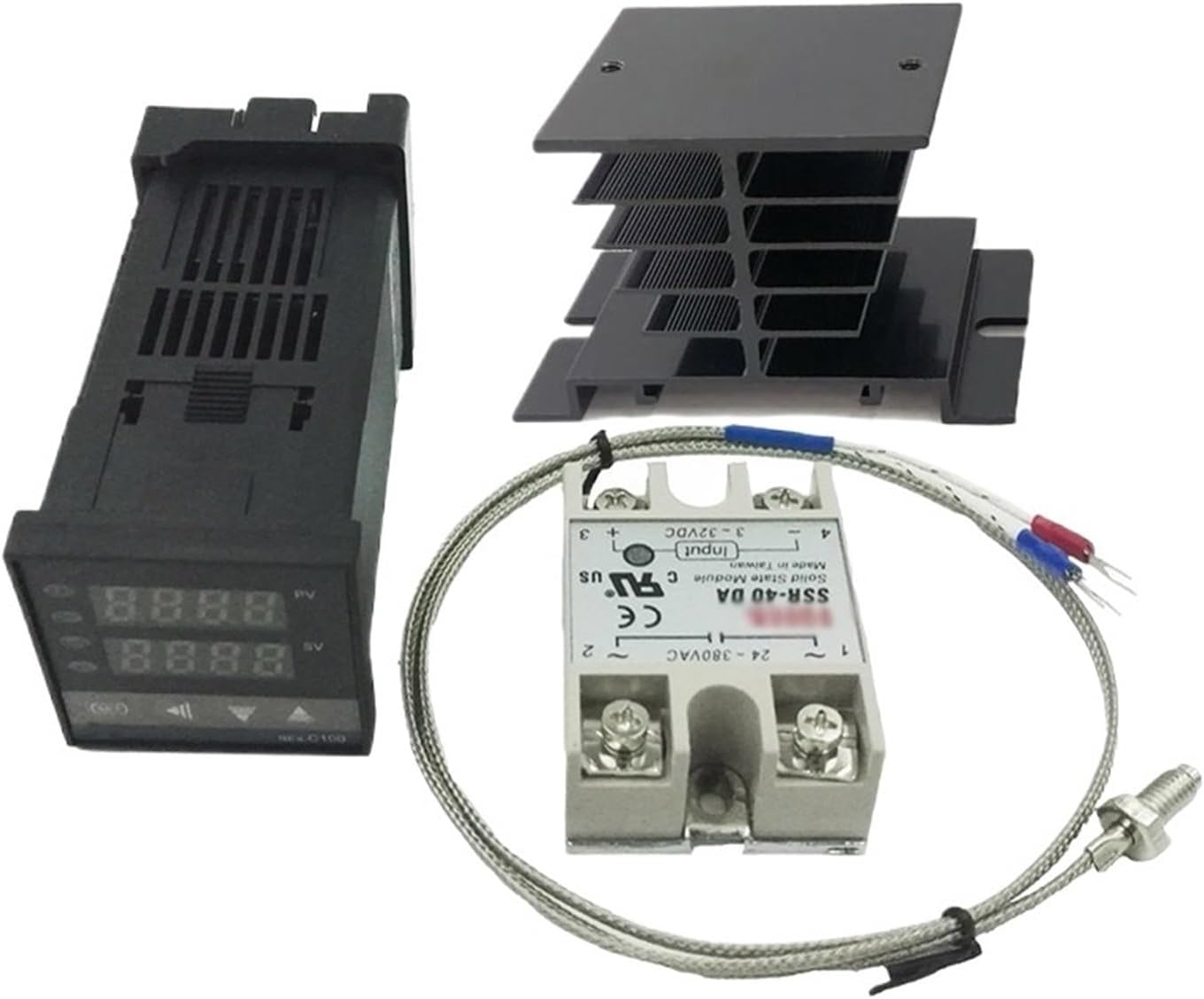

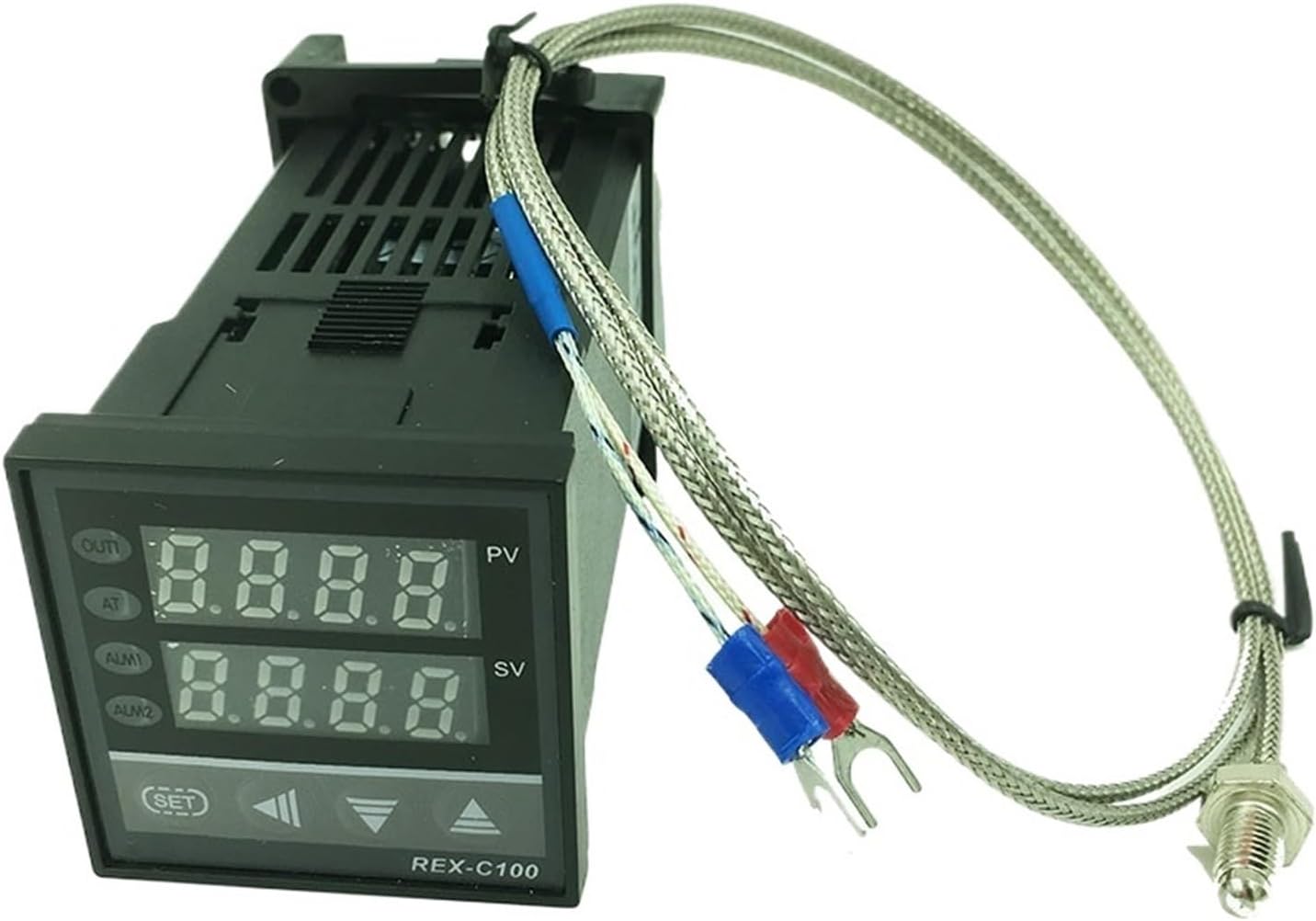

C100 Digital PID Temperature Control Controller Thermostat Relay/SSR Output 0 to1300C with K-Type Thermocouple Probe Sensor(SSR Output set3)

Temperature Controllers-C100 Digital PID Temperature Control Controller Thermostat Relay/SSR output 0 to 1300C with K-type Thermocouple Probe SensorFeatures:Thermostat:Product model :REX-C100FK02-M(V)*AN (we sell both SSR output and relay output in this link)Output:RELAY /SSRDimensions:about48mm×48mm×110mm(APP)Measuring accuracy: ±0.5%FSCold-end compensation tolerance: ±2 Celsius (can be modified by software in 0~50 Celsius )Resolution: 14 bitSampling cycle: 0.5 SecProcess value (PV), Setting value (SV)Output, alarm and self-tuning can be indicated by: LEDPIN control (including ON/OFF, step-type PID and continuous PID)Self-tuning controlRelay output: contact capacity 250V AC 3A (resistive load)Alarm function output: 2 wayContact capacity of output: 250V AC 3A (resistive load)Setting value (SV): identical to measuring range (PV)Proportional band (P): 0~full range (ON/OFF control when set to 0)Detective temperature range:0 to 400 CelsiusInsulation resistance: >50M ohm(500V DC)Insulation resistance: 1500V AC/minPower Consumption: 10 VAService environment: 0~50 Celsius ,environment with no corrosive gas 30~85% RHSupply:AC100V--240V 50/60HZTemperature range:0-1300C( the thermostat can work in 1300C max, but sensor can only stand 400--500C, if you want to work in 1300C, better sensor is needed)K Thermocouple Probe Cable1.Length: 1M2.Sensor diameter:4.5mm3.Temperature rang :0-400C4.Internal Insulation: Fiberglass5.External Shielding: Insulated Shielding40A SSR Relay1.Output Current:40A2.Input Voltage:DC 3-32V3.Output Voltage:24-380V AC4.Output Voltage Range:Standard TypePackage include :We sell different sets in this link. different sets include different contents as below iamges:Relay output set1:Relay output set2:SSR output set 1:SSR output set 2:SSR output set3:Porudct images forrelay output thermostat :Product images for SSR output thermostat:==========Battery Included : NoHign-concerned Chemical : NoneIs Smart Device : NoOrigin : Mainland Cable length : 1mUse : IndustrialCertification : Display Size : 1.9 Inches & Under
